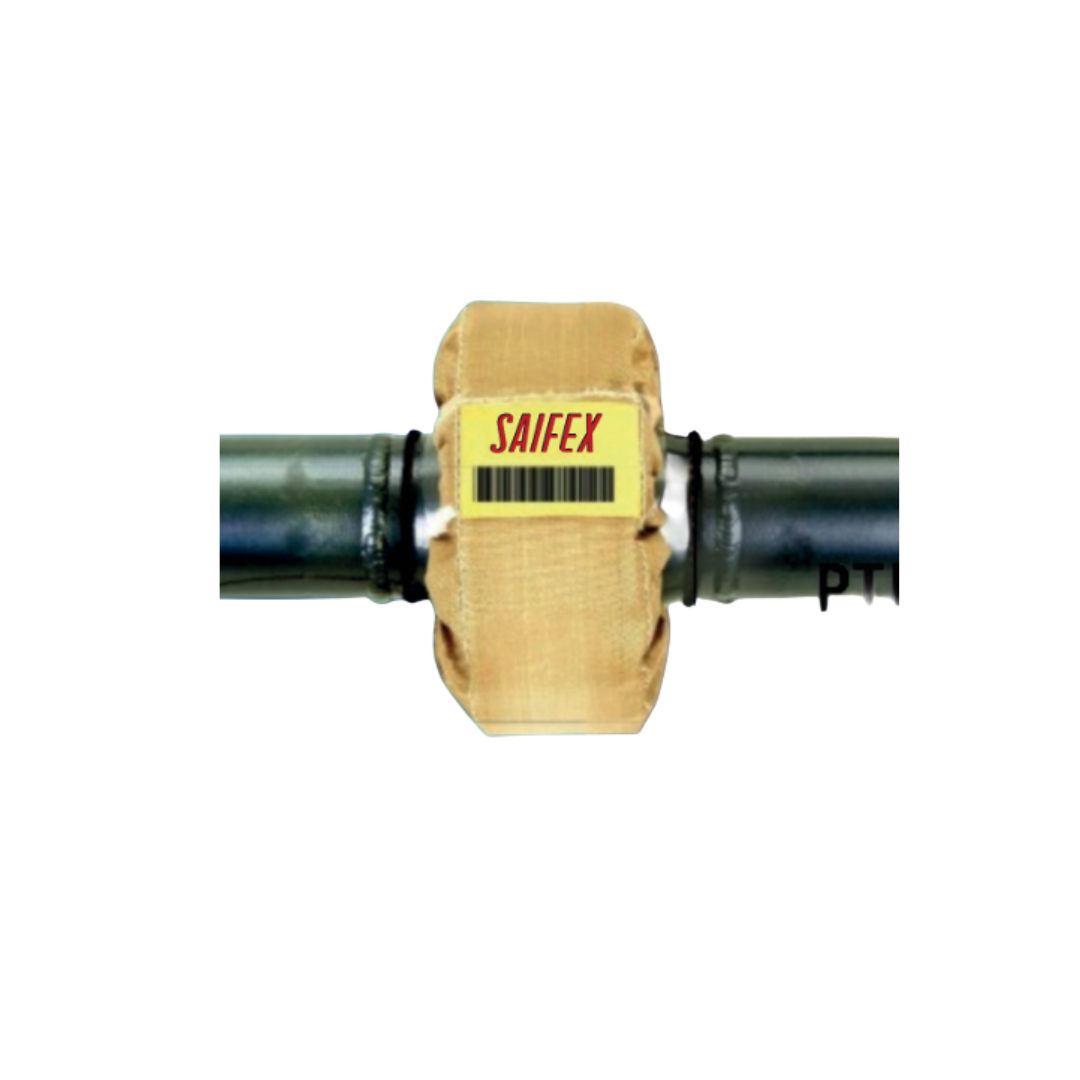

PTFE Flange Guards

What Are PTFE Flange Guards?

PTFE Flange Guards — also known as flange spray shields, pipeline spray safety guards, or chemical flange protectors — are purpose-built protective sleeves manufactured by Saifex Industries from multiple layers of PTFE-coated fiberglass cloth, stitched together with Kevlar threads. They wrap around pipe flanges, couplings, elbows, tees, and unions to contain and safely redirect hazardous chemical spray in the event of a flange joint failure — shielding workers, equipment, and the surrounding plant from acids, caustics, fuels, oils, and other corrosive process fluids.

Unlike basic rubber or PVC spray shields, Saifex PTFE Flange Guards combine PTFE’s near-total chemical inertness and high temperature resistance with the exceptional mechanical strength and fatigue resistance of fiberglass and Kevlar. The result is a spray safety product rated to 240°C and 1,650 PSI — built to perform in the most aggressive process conditions found in oil and gas, petrochemical, refining, marine, and heavy industrial facilities across the GCC. Every guard includes an integrated litmus patch for early leak detection and a quick-connect double-locking mechanism for rapid, tool-free installation. Saifex Industries supplies PTFE Flange Guards across UAE, Saudi Arabia, Qatar, Oman, Kuwait, and Bahrain for prompt delivery to plant, site, or port.

Description

Saifex Industries PTFE Flange Guards are a trusted spray safety solution for process plants, pipelines, and offshore platforms handling hazardous fluids across the GCC. Wherever flanged joints carry high-pressure corrosive, acidic, caustic, or flammable service fluids, a spray-out event poses a serious threat to worker safety and plant integrity. Saifex PTFE Flange Guards provide a robust, fast-to-install first line of defence at every vulnerable joint.

The guard’s core construction uses multiple laminated layers of PTFE-coated fiberglass cloth — combining PTFE’s chemical inertness with fiberglass’s outstanding mechanical strength and fatigue resistance — stitched with Kevlar threads for structural integrity under sustained pressure and vibration. A central woven scrim runs through the guard body to diffuse spray pressure, preventing dangerous high-velocity jetting while also improving the grip between the guard and the flange surface.

Three design features set Saifex PTFE Flange Guards apart. The quick-connect double-locking fastener allows fitting and removal without any special tools — essential in environments where operators work in full PPE. The integrated litmus patch delivers early visual warning of a developing leak, giving maintenance teams time to act before a minor weep becomes a spray incident. And the guard’s UV resistance and fire retardancy ensure it performs without degradation in outdoor, high-temperature, and fire-risk process environments — conditions that are standard across the UAE and GCC.

Each guard carries a 2-year product guarantee and is compatible with flanges, couplings, elbows, tees, and union joints on oil, fuel, acid, caustic, and corrosive service lines. Saifex Industries maintains stock for prompt delivery to oil and gas facilities, refineries, marine terminals, desalination plants, and industrial facilities throughout the GCC region.

Construction & Key Component Details

1. Central Scrim The woven central scrim runs through the layers of the guard body and performs two essential functions: it diffuses the pressure of a spray event to prevent dangerous high-velocity jetting of hazardous fluid, and it grips the outer surface of the flange to keep the guard securely in position under flow and vibration.

2. Quick-Connect Double-Locking System The fastening system requires no tools for fitting or removal. The double-lock mechanism prevents accidental opening under pressure — critical in petrochemical and offshore environments where installation personnel work in full chem-suits, gloves, and respiratory equipment and need to fit guards quickly and with certainty.

3. Litmus Patch — Integrated Leak Detection A factory-fitted litmus patch sits on the inner face of each guard, directly over the flange joint. On contact with process fluid — whether acidic or alkaline — the patch undergoes a visible colour change, providing immediate early warning of a developing leak before it escalates into a spray event.

Features & Benefits

• PTFE-coated fiberglass construction — chemically inert and resistant to virtually all industrial acids, caustics, solvents, and corrosive process fluids
• Kevlar-stitched multi-layer build — high mechanical strength and fatigue resistance under sustained pressure and plant vibration
• Central scrim — inbuilt pressure diffusion prevents dangerous spray jetting and improves flange grip
• Quick-connect double-locking fastening — tool-free installation and removal, designed for full PPE conditions
• Integrated litmus patch — early visual leak detection enabling proactive maintenance before spray escalation
• UV resistant — maintains full structural and chemical integrity in outdoor and high-UV GCC environments
• Fire retardant — suitable for hydrocarbon service lines, fuel systems, and fire-risk classified process areas
• Rated to 240°C and 1,650 PSI / 120 bar — covers the majority of demanding industrial and petrochemical process conditions
• Compatible with flanges, couplings, elbows, tees, and unions — versatile fit across all common pipe joint types
• 2-year product guarantee — backed by Saifex Industries

Applications

• Oil and gas pipeline flanges — containment of hydrocarbon spray-out at pressurised joints in upstream, midstream, and downstream facilities
• Fuel service lines — spray containment at couplings and unions in refineries, fuel terminals, and storage facilities
• Acid and caustic process lines — chemical spray protection in chemical plants, water treatment, and desalination facilities
• Offshore platform pipework — spray safety compliance on high-pressure marine process systems exposed to salt air and UV
• Petrochemical and refining plant process lines — protection across aggressive multi-fluid, high-temperature service environments
• Marine and shipbuilding pipework — safety compliance on vessel fuel, ballast, and chemical system flanges
• Power generation and desalination plants — protection at high-temperature flanged joints in critical service lines
• Industrial facilities handling hazardous fluids — any plant where flanged joints present a spray-out risk to personnel or equipment

Industries Served

• Oil & Gas — Upstream, Midstream & Downstream
• Petrochemical & Chemical Processing
• Refining & Fuel Terminals
• Marine, Offshore & Shipbuilding
• Power Generation & Desalination
• Water Treatment & Industrial Utilities
• Heavy Industry & Manufacturing
• Construction & Infrastructure — Industrial Piping

Why Buy from Saifex Industries?

• Trusted GCC supplier of precision industrial and marine materials — shims, engineering polymers, copper-nickel alloys, and safety products
• PTFE Flange Guards stocked in UAE for prompt delivery to oil and gas, marine, and industrial facilities across the GCC
• Dedicated B2B technical support — guidance on correct guard sizing, flange compatibility, and site installation
• Export capability and delivery across UAE, Saudi Arabia, Qatar, Oman, Kuwait, and Bahrain
• Competitive pricing with full product documentation available on request
• Email: sales@copaltitemena.com | Call / WhatsApp: +971 58 535 2330

Technical Specifications

(Standard ANSI, DIN, and JIS flange sizes available. Custom dimensions on request.)

FAQs

Q1: What are PTFE Flange Guards used for? PTFE Flange Guards are spray safety shields fitted around pipe flanges, couplings, elbows, tees, and union joints to contain and redirect hazardous chemical spray in the event of a joint failure. They are used wherever pressurised lines carry corrosive, acidic, caustic, flammable, or toxic process fluids — protecting workers and equipment from dangerous spray-out events.

Q2: What makes Saifex PTFE Flange Guards different from standard spray shields? Saifex PTFE Flange Guards include three features not found on basic shields: an integrated litmus patch for early leak detection, a quick-connect double-locking fastener for tool-free PPE-compatible installation, and a central scrim for inbuilt pressure diffusion. They are also fully fire retardant and UV resistant — purpose-built for GCC outdoor and high-temperature process environments.

Q3: What is the litmus patch and how does it work? The litmus patch is a chemical indicator integrated into the inner face of the guard, positioned directly over the flange joint. On contact with process fluid — acidic or alkaline — it changes colour visibly, providing early warning of a developing leak before it escalates to a spray incident.

Q4: What is the maximum temperature and pressure rating? Saifex PTFE Flange Guards are rated to a maximum of 240°C and 1,650 PSI (120 bar) — covering the majority of demanding industrial and petrochemical service conditions.

Q5: What flange types and fittings are compatible? PTFE Flange Guards are compatible with flanges, couplings, elbows, tees, and union joints across ANSI, DIN, and JIS standards. Custom sizes are available on request.

Q6: Are PTFE Flange Guards suitable for acid and caustic service lines? Yes. PTFE’s near-total chemical inertness makes the guard resistant to virtually all industrial acids, caustics, solvents, and corrosive fluids. The Kevlar stitching and fiberglass substrate maintain structural integrity under prolonged chemical exposure.

Q7: How is the guard installed and removed? The quick-connect double-locking fastening system requires no tools for fitting or removal. It is specifically designed for field conditions where operators work in chemical-resistant gloves, full-face masks, and chem-suits — ensuring fast, safe installation under all PPE requirements.

Q8: Are PTFE Flange Guards fire retardant? Yes. They are fully fire retardant, making them suitable for hydrocarbon service lines, fuel systems, and process areas with fire risk classification requirements.

Q9: What is the product guarantee? Saifex PTFE Flange Guards carry a 2-year product guarantee.

Q10: Where can I buy PTFE Flange Guards in the UAE or GCC? Saifex Industries supplies PTFE Flange Guards from Dubai across UAE, Saudi Arabia, Qatar, Oman, Kuwait, and Bahrain. Email sales@copaltitemena.com or call +971 58 535 2330 for sizing, availability, and pricing.

Related Products from Saifex Industries

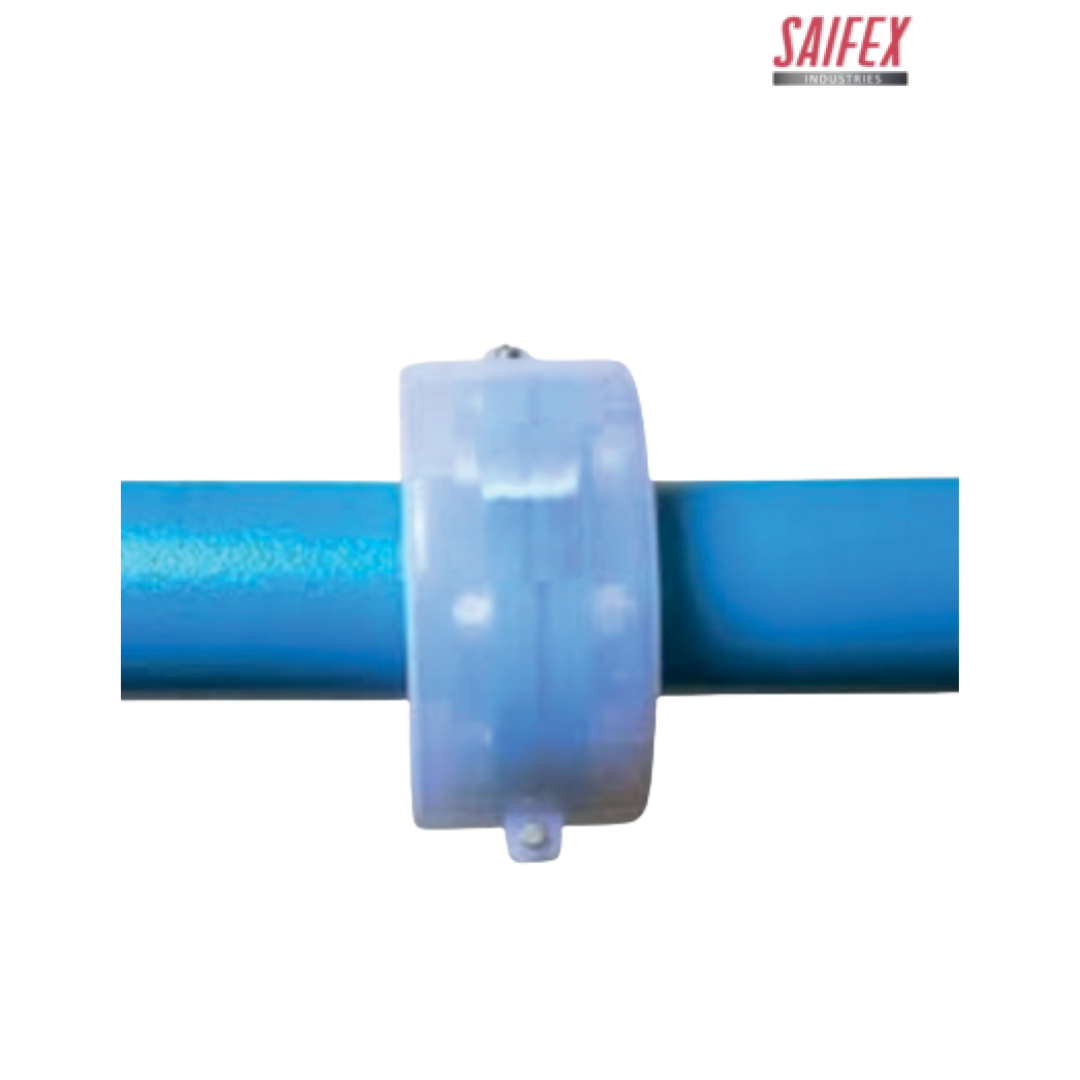

• PP Box Type Flange Guard — Polypropylene spray protection cover for standard flange connections
• Virgin PTFE — Pure PTFE sheets, rods & gaskets for chemical and thermal resistance
• Glass-Filled PTFE — Reinforced PTFE for dimensional stability and creep resistance
• Carbon-Filled PTFE — High wear resistance PTFE for dynamic sealing applications
• Bronze-Filled PTFE — High load-bearing PTFE for bushings and bearing surfaces
• Graphite-Filled PTFE — Self-lubricating PTFE for low-friction sealing components
• Moly-Filled PTFE — PTFE + MoS₂ for extreme pressure sealing applications
• PTFE Stainless Steel — Metal-filled PTFE sheets, rods & components
• SS316 Stainless Steel Shims – Marine Grade — Precision alignment shims for marine and offshore assemblies

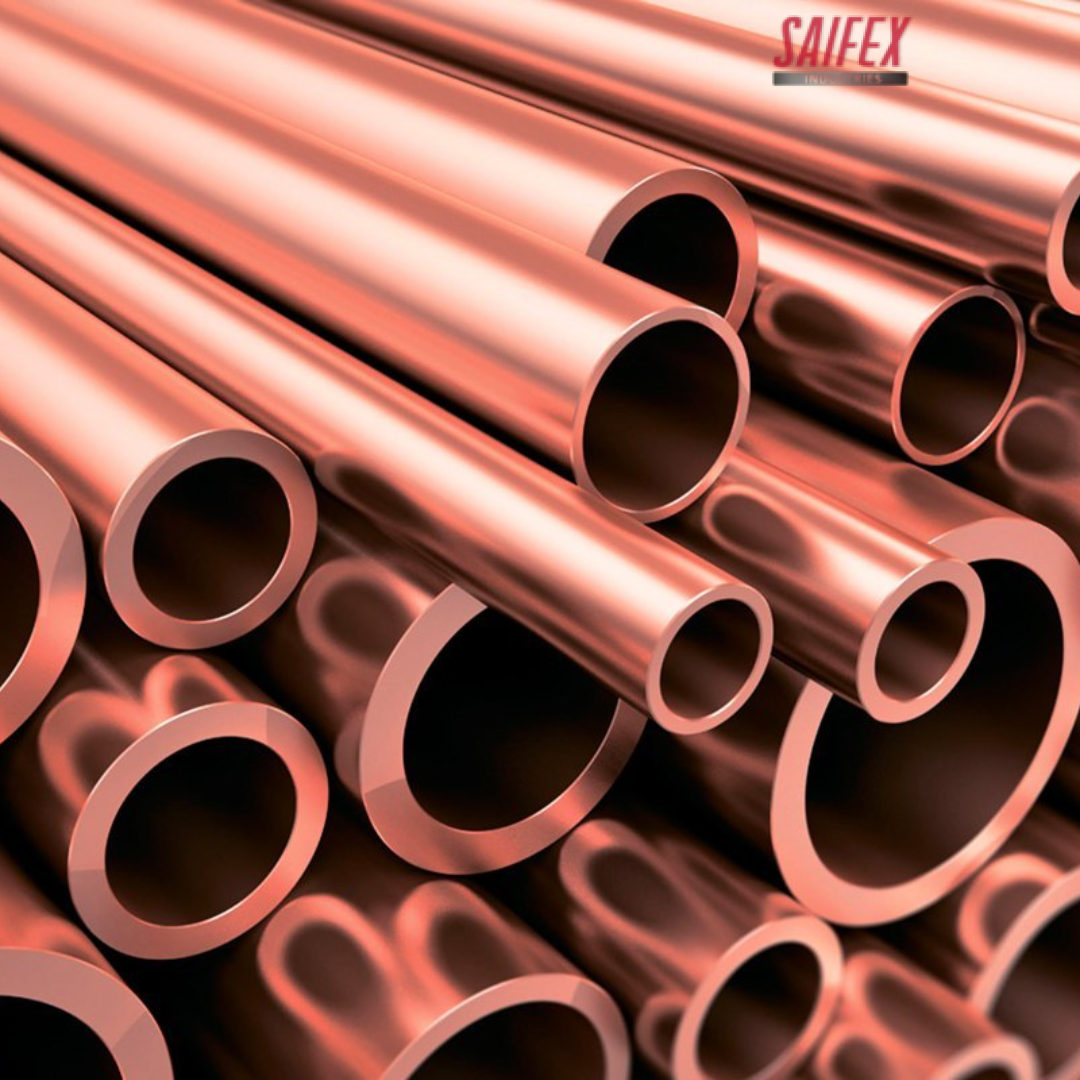

• Cu-Ni 90/10 (C70600) — Copper-nickel tubes, plates & sheets for seawater systems
